Air Gage Tooling
Non-contact air tooling (air gauges) made to your part: air plugs for bores, air rings and snap gages for shafts, and the certified masters that set them. Build the part number and price any size online in minutes.

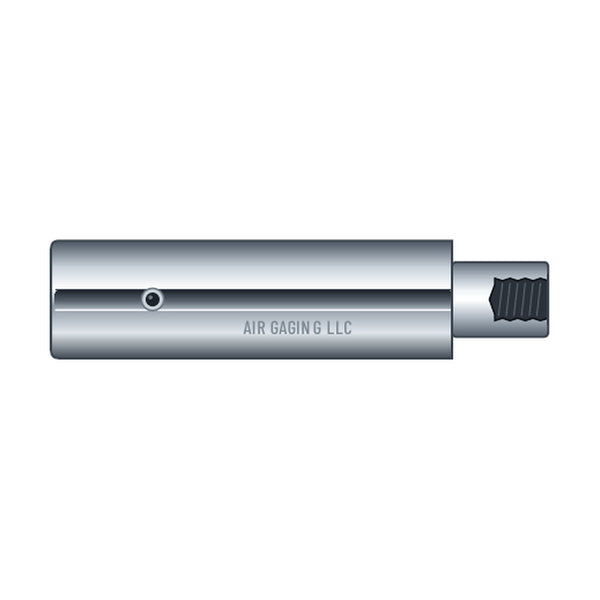

Thru-Hole Air Plug Gage (APT)
Longest-wearing air plug for through bores: the nose guides the plug in and takes the wear.
Sizes: .059" to 8.260" (1.50 to 209.80 mm)
Details & pricing →

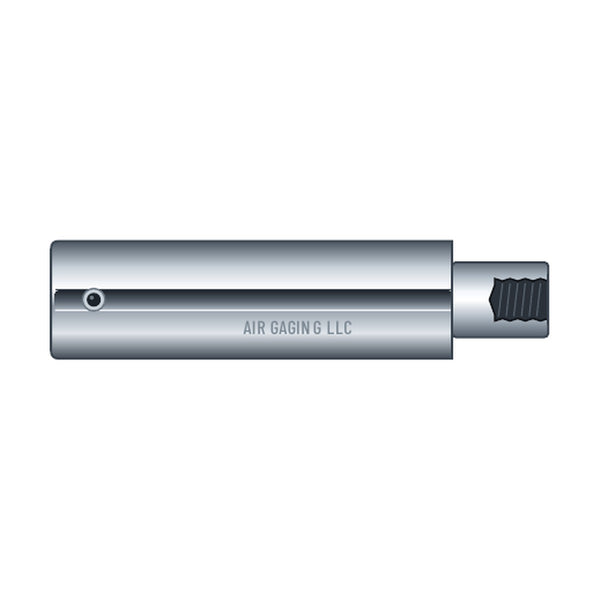

Blind-Hole Air Plug Gage (APB)
Jets close to the nose, for measuring near the bottom of a blind bore.
Sizes: .059" to 8.260" (1.50 to 209.80 mm)
Details & pricing →

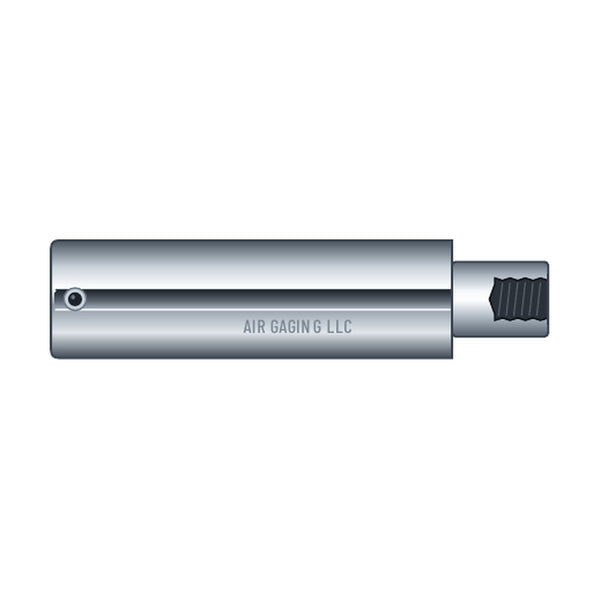

Super-Blind Air Plug Gage (APS)
Deepest reach into a blind bore, with jets as close to the nose as they can go.
Sizes: .059" to 8.260" (1.50 to 209.80 mm)
Details & pricing →

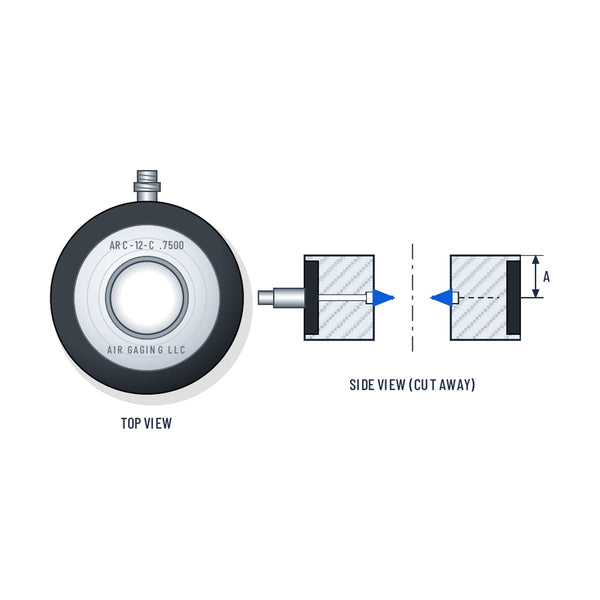

Center-Jet Air Ring Gage (ARC)
Jets at mid-width of the ring, for the best wear life on straight diameters.
Sizes: .061" to 7.500" (1.55 to 190.50 mm)
Details & pricing →

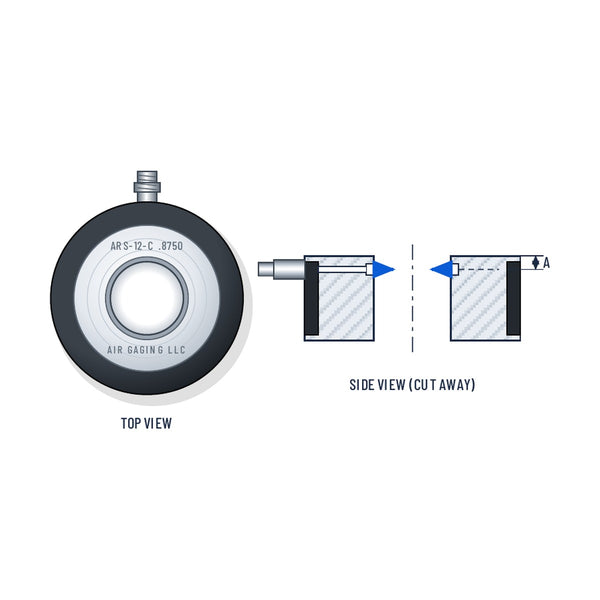

Shoulder-Jet Air Ring Gage (ARS)
Jets near the leading face, to measure a diameter close to a shoulder.
Sizes: .061" to 7.500" (1.55 to 190.50 mm)
Details & pricing →Extra-Close Shoulder-Jet Air Ring Gage (ARX)
Jets as close to the ring face as possible, for diameters right against a shoulder.
Sizes: .061" to 7.500" (1.55 to 190.50 mm)
Details & pricing →

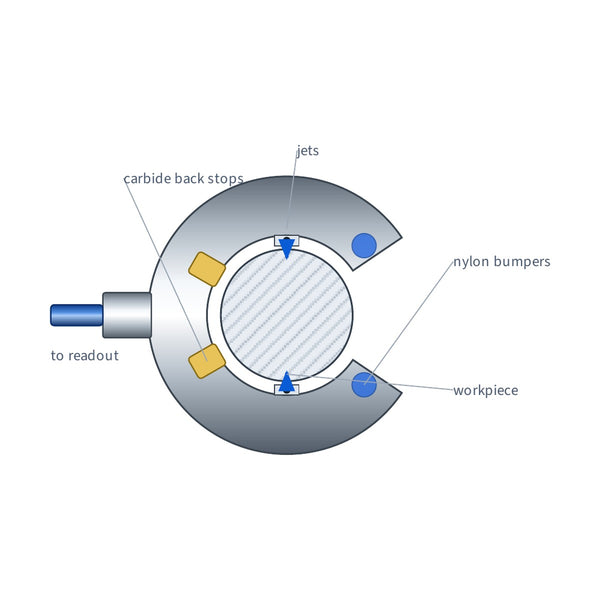

Air Snap Gage (C-Frame)
Measures a shaft from the side, so the part can stay on the grinder or between centers.
Sizes: .60" to 7.81" (15.2 to 198.3 mm)
Details & pricing →
Ring Gage Master (Setting Ring)
Lapped, certified setting rings for air plugs, classes XX to Z.
Sizes: .0901" to 19.010" (2.29 to 482.85 mm)
Details & pricing →
Plug Gage Master: Taperlock, Trilock & Wire
GO/NO GO plug masters in wire, taperlock and trilock styles, lapped and certified.
Sizes: .015" to 12.010" (0.38 to 305.05 mm)
Details & pricing →
Master Setting Disc (SDL / SDS)
Lapped setting discs for air rings and snap gages, in ANSI style 1 or style 3.
Sizes: .150" to 14.510" (3.81 to 368.55 mm)
Details & pricing →Choose your tooling
| You need to measure | Use | Sizes |
|---|---|---|
| A bore (inside diameter) | Air plug gage: thru-hole, blind or super-blind | .059″ to 8.260″ |
| A shaft or pin you can pass through a ring | Air ring gage: center-jet, shoulder-jet or extra-close | .061″ to 7.500″ |
| A shaft that stays on the machine | Air snap gage: C-frame, center or shoulder jet | .60″ to 7.81″ |
| Setting or checking any of the above | Setting masters: rings, discs, taperlocks, trilocks and wires | .015″ to 19.010″ |
Dual Master or Single Master?
Dual Master tooling is set with two masters, one at each end of the tolerance, and works with any two-master readout. Single Master tooling is set on one master at nominal and is matched to a single-master readout, such as the Air Gage Pro M5-L or M5-H that replaces Dimensionair readouts. Compare single and dual master.
How online pricing works
Pick the style, enter your size and tolerance, and the configurator builds the part number and shows the price. You get a formal PDF quote by email, and you can add masters, handles and hoses to the same quote. For custom work, such as multi-diameter gages or special bores, email a print to info@airgaging.com.
Full dimensions and ordering codes are in the air tooling catalog (PDF). New to air gaging? Start with how air gaging works.
Know your size and tolerance?
Build the part number and get a formal PDF quote in minutes.
