Metro M5 Air Gage Display
$1,620.00
Typically ships in 1–2 weeks
Request a QuoteNeed a formal quote, several units or purchase-order terms? Request a quote and we will send one.
The Metro M5 is the readout inside the Air Gage Pro, sold here on its own for panel mounting, fixtures and OEM builds. It connects to air plugs, rings and snap gages of any brand, with one or two air inputs.
Required for operation (sold separately)
- Precision Filter-Regulator, FIL-002: the M5 needs clean, regulated air to read accurately
- One restrictor set (ACS-PNE-037) per air input
Choose your version
| Version | Use with |
|---|---|
| Dual master (MET-M5AIR1 / MET-M5AIR2) | Two-master air tooling of any brand; replaces the Metro M3 air display (13040) |
| Single master, low amp (-MF-L) | Replaces Dimensionair D-2500, D-4000, D-5000, D-8000 |
| Single master, high amp (-MF-H) | Replaces Dimensionair D-10000, D-16000, D-20000, D-32000 |
Key features

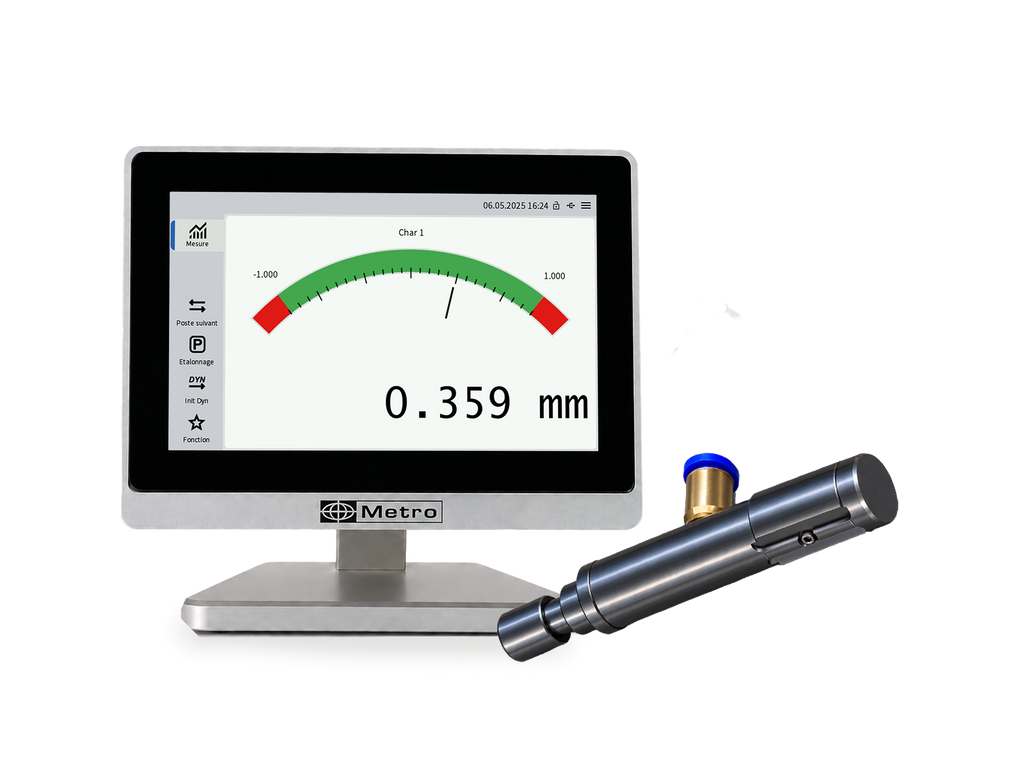

- 5″ capacitive color touchscreen; dial, bar graph or digital view; inch or metric
- Up to 3 characteristics on one screen, 10 programs, password protection

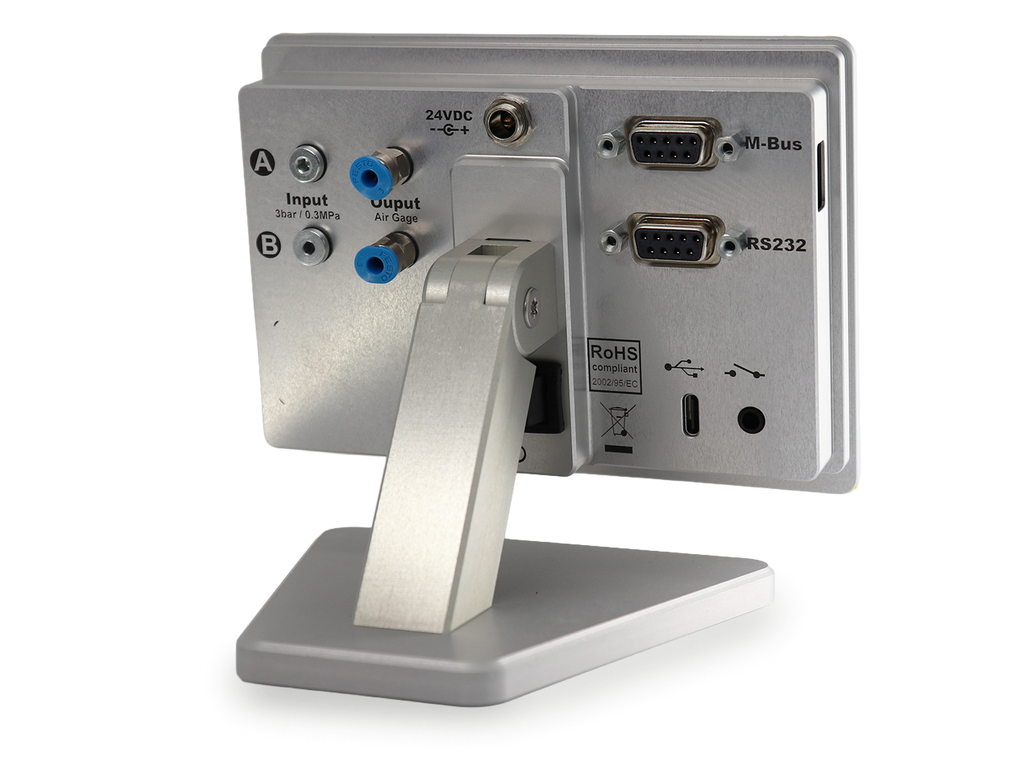

- USB export to Excel/CSV; RS232 ASCII (Q-DAS) or Modbus RTU; foot pedal input
- QR code setup; expandable through the M-Bus port
Want it ready to use on the bench? The Air Gage Pro packages the M5 with housing, filter-regulator and quick-connects.
Dimensionair is a trademark of its owner, used only to identify compatible equipment. Air Gaging LLC is not affiliated with or endorsed by it.
