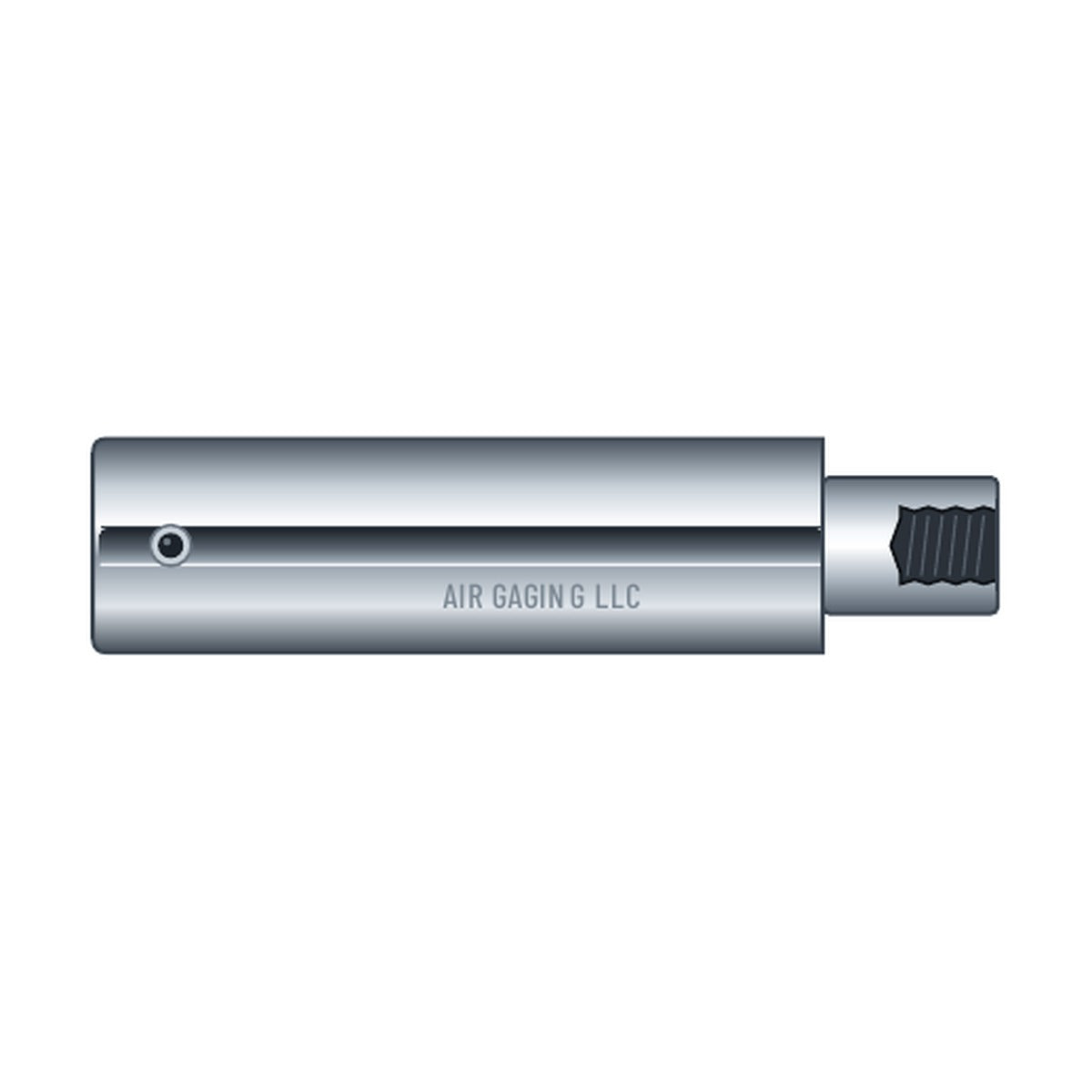

Blind-Hole Air Plug Gage (APB)
Jets close to the nose, for measuring near the bottom of a blind bore.
- Sizes
- .059" to 8.260" (1.50 to 209.80 mm)
- Part number
APB-[jet+class]-[material]-[min/max]- Example
APB-64-S-.2495 (single master)
Priced by size in the online configurator
Build & price online →- Build the part number and see the price in minutes
- Formal PDF quote emailed to you
- Dual Master or Single Master tooling
The blind-hole air plug (APB) puts the jets close to the nose so you can measure near the bottom of a blind bore. It is the usual choice for blind holes, with better wear life than the super-blind style.
Where the jets sit
Dimension A (nose to jet centerline) runs from about .080″ on the smallest plugs to .125″ on the largest. A plug can't measure closer to the bottom than the leading edge of its jet; if you need to get closer still, see the super-blind (APS) style. For through bores, the thru-hole (APT) style lasts longer.
Dual Master or Single Master
Choose Dual Master tooling to set the gage with a minimum and maximum master and work with any two-master readout. Choose Single Master tooling to set on one master at nominal with a matched single-master readout such as the Air Gage Pro M5-L or M5-H. Not sure? Read single vs. dual master air gaging.
How to order
| Dual Master | Single Master | |
|---|---|---|
| Part number | Style – jet code + clearance class – material – min/max bore | Style – spec code – material – nominal master size |
| Jet codes | 1, 4 (large jet, above .323″) or 5 | 6, 7 or 8 |
| Body size | Minimum bore − clearance | Nominal master size − clearance |
| Masters needed | Two: minimum and maximum | One, at nominal |
Material: C chrome-plated or S hardened steel. Every probe has recessed jets, so body wear doesn't shift the reading, and an air relief groove along the gaging body so blind bores don't build up back-pressure.
What we need to quote
- Bore size and tolerance
- Bore depth, and whether it is through or blind
- Grooves, cross holes or chamfers near the measuring point
- Your readout make and model, or single vs. dual master
Handles, hose assemblies, extensions and readout fittings are on the accessories page. Full dimensions are in the air tooling catalog (PDF).
