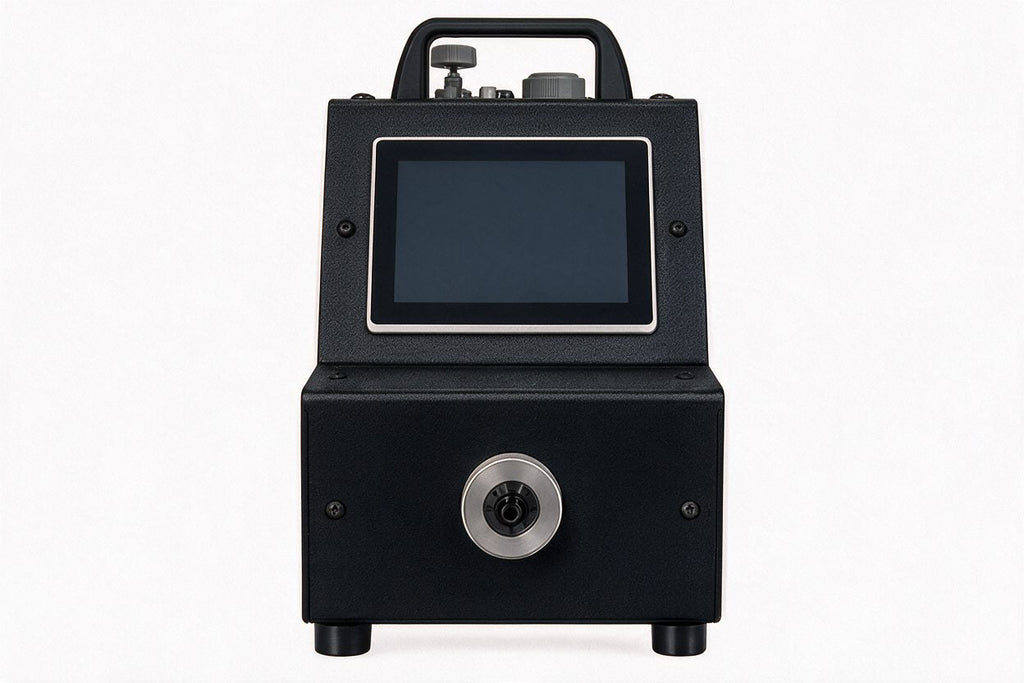

Air Gage Pro M5-H Single Master Air Gage Station, High Amplification
Typically ships in 1–2 weeks
Request a QuoteNeed a formal quote, several units or purchase-order terms? Request a quote and we will send one.
Retire the dial. Keep the tooling. The Air Gage Pro M5-H replaces high-amplification Dimensionair readouts and connects to the single-master plugs, rings and masters you already own.
Replaces
| Readout replaced | Amplification |
|---|---|
| Dimensionair D-10000 | 10,000:1 |
| Dimensionair D-16000 | 16,000:1 |
| Dimensionair D-20000 | 20,000:1 |
| Dimensionair D-32000 | 32,000:1 |
| Federal EAG-33xxx and EAG-34xxx columns | High |
| Western Gage Series 70 readouts | High |
Works with Tool Code 5 or 10 single-master tooling and Series 70 tooling. Low- and high-amplification tooling do not interchange, so match by model number or tool code (how to tell which you have). Running D-8000 or lower? See the M5-L.
Changeover in three steps
- Remove the old readout from the bench.
- Connect your existing tooling to the front quick-connects, then hook up shop air and power.
- Master and measure with one master at nominal, same as always.
Specifications
| Display | 5″ capacitive color touchscreen, 800×480 |
|---|---|

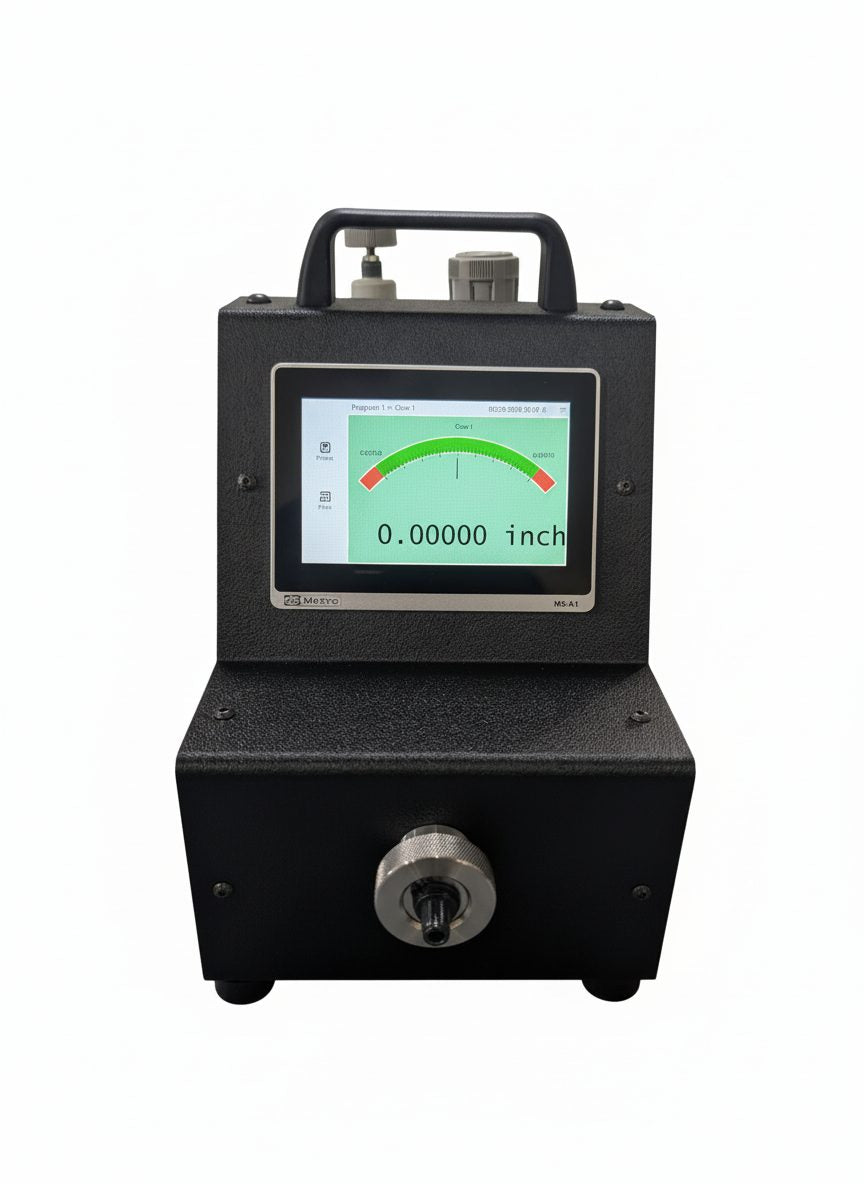

| Views | Analog dial, bar graph or digital; inch or metric |
| Characteristics | Up to 3 on one screen, with math between inputs |
| Programs | 10, recalled by touch or QR code; password protection |
| Data output | USB export to Excel/CSV, keyboard emulation; RS232 ASCII (Q-DAS) or Modbus RTU |

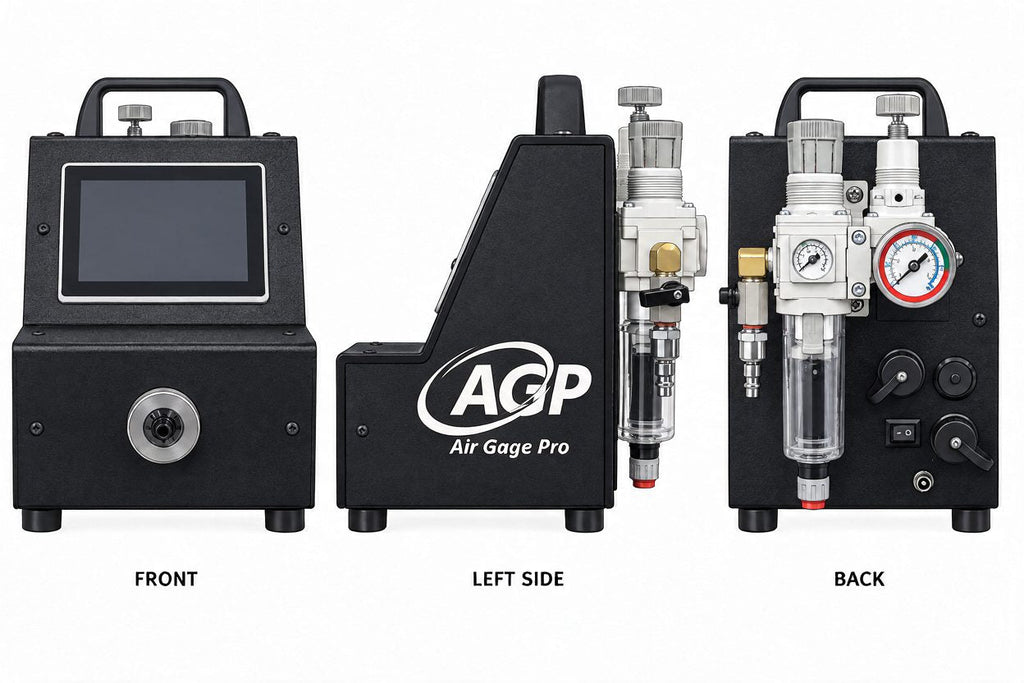

| Air preparation | Built-in filter-regulator with pressure gauge; shop-air inlet on the back |
| Tooling connection | Quick-connect couplers on the front |
| Housing | Sloped PETG bench housing with carry handle, guaranteed for life against breakage |
| Size | 7.01 × 11.30 × 11.02 in (178 × 287 × 280 mm) |
| Power | 24 VDC |
In the box
Air Gage Pro station with Metro M5 readout, filter-regulator and hose. Everything you need to connect shop air and your tooling.
Replacing 10 or more gages? See fleet upgrade pricing. Need tooling too? Price Series 70 air plugs, rings and masters online.
Dimensionair, Federal and Western Gage are trademarks of their respective owners, used only to identify compatible equipment. Air Gaging LLC is not affiliated with or endorsed by them.
