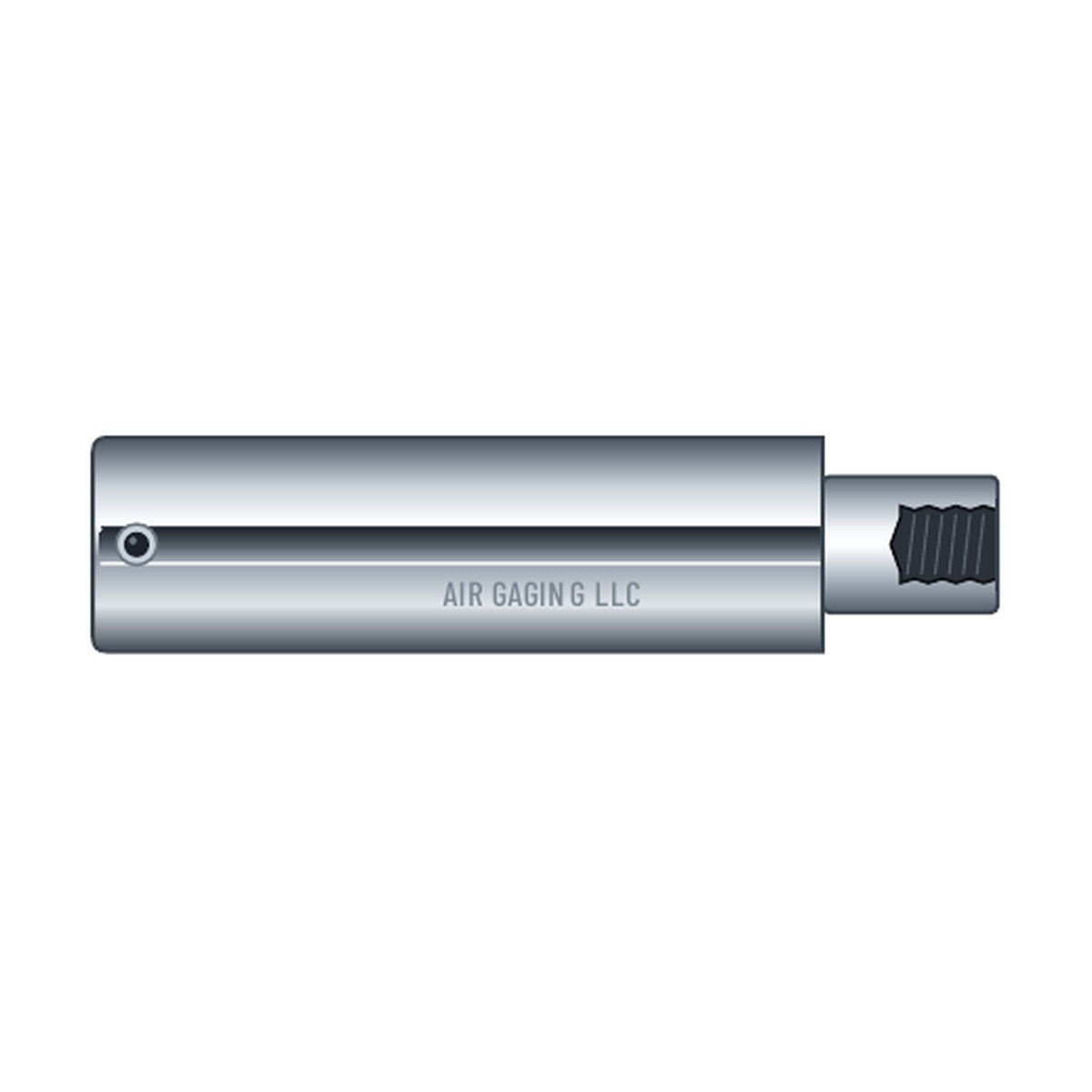

Drawing for illustration. Every gage is made to your size.
Made to order · APS · Dual or Single Master
Super-Blind Air Plug Gage (APS)
Deepest reach into a blind bore, with jets as close to the nose as they can go.
- Sizes
- .059" to 8.260" (1.50 to 209.80 mm)
- Part number
APS-[jet+class]-[material]-[min/max]- Example
APS-12-C-.3750/.3755
Priced by size in the online configurator
Build & price online →- Build the part number and see the price in minutes
- Formal PDF quote emailed to you
- Dual Master or Single Master tooling
The super-blind air plug (APS) places the jets as close to the nose as possible, for the deepest reach into a blind bore. The trade-off is wear: with so little nose ahead of the jet, it wears faster than the other styles. Use it only when the part needs it.
Where the jets sit
Dimension A (nose to jet centerline) runs from about .050″ on the smallest plugs to .105″ on the largest. If your part allows a little more room, the blind (APB) style will last longer.
Dual Master or Single Master
Choose Dual Master tooling to set the gage with a minimum and maximum master and work with any two-master readout. Choose Single Master tooling to set on one master at nominal with a matched single-master readout such as the Air Gage Pro M5-L or M5-H. Not sure? Read single vs. dual master air gaging.
How to order
| Dual Master | Single Master | |
|---|---|---|
| Part number | Style – jet code + clearance class – material – min/max bore | Style – spec code – material – nominal master size |
| Jet codes | 1, 4 (large jet, above .323″) or 5 | 6, 7 or 8 |
| Body size | Minimum bore − clearance | Nominal master size − clearance |
| Masters needed | Two: minimum and maximum | One, at nominal |
Material: C chrome-plated or S hardened steel. Every probe has recessed jets, so body wear doesn't shift the reading, and an air relief groove along the gaging body so blind bores don't build up back-pressure.
What we need to quote
- Bore size and tolerance
- Bore depth, and whether it is through or blind
- Grooves, cross holes or chamfers near the measuring point
- Your readout make and model, or single vs. dual master

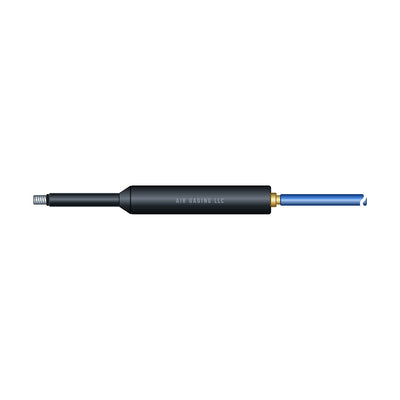

Handles, hose assemblies, extensions and readout fittings are on the accessories page. Full dimensions are in the air tooling catalog (PDF).
